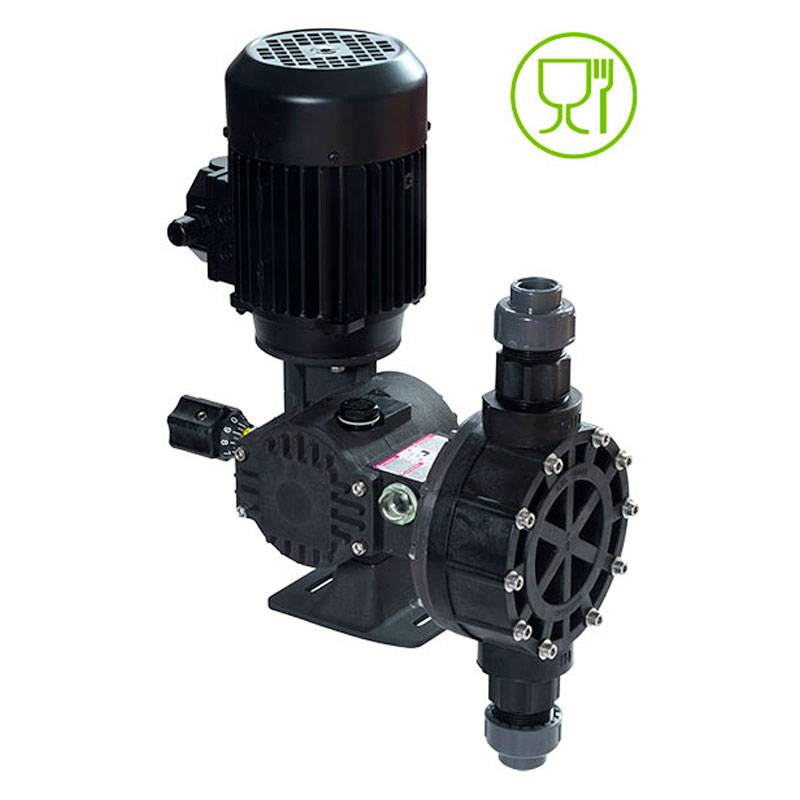

M SERIES
Robust and reliable spring return mechanical diaphragm pump.
The double-layer PTFE membrane grants a high chemical compatibility, the pump body is made of aluminum and coated through a cataphoresis process to increases resistance to chemical and atmospheric agents.
These features, combined with a great dosing accuracy and very low maintenance, make this pump the ideal solution for applications in the water treatment industry, power generation, pulp and paper and many more.
- Flow rate from 7 to 1.500 l/h (1,5 to 396 gph) in simplex configuration, also available in multiplex configuration
- Working pressure up to 12 barg or 175 psi
- Cataphoresis coated aluminum enclosure for greater corrosion resistance
- AISI 316, PP, PVDF liquid end
- Manual stroke length adjustment, electronic actuator available
- Available with PRO electronic actuator
- NEW: EC 1935/2004 “Food Contact Regulation” configuration available
MODEL | M810 | M1070 | M1260 | M1500 | M960 | M1140 | M1350 | M1640 |
Pump Body | Cataphoresis Aluminum Coating | |||||||
Remote Control | Fully compatible with PRO and Z actuator | |||||||
ø (mm) | 200 | |||||||
Stroke Length (mm) | 15 | |||||||
Flowrate (l/h) | 810 | 1070 | 1260 | 1500 | 960 | 1140 | 1350 | 1640 |
Max Pressure (barg) | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
SPM | 70 | 95 | 115 | 155 | 84 | 114 | 138 | 186 |
Threaded Connections | 1” 1⁄2 BSP F | 1” 1⁄2 NPT F | ||||||
Flanged Connections | DN40 PN16 | 1” 1⁄2 ANSI150 RF | ||||||
Amb. Temp (°C) | -10° + 60° | |||||||
Max Temp. Dosed Fluid (°C) | -10° + 60° | |||||||
Motor Power (KW) | 0,75 | 1,1 | ||||||
Motor Size | 80 | 90 | ||||||
Voltage | 230/400 (3 phase) | |||||||
Frequency (HZ) | 50 | 60 | ||||||
Pumphead | PP | |||||||
Diaphragm | PTFE (process side) + NBR | |||||||
Valve Guide | PP | |||||||
Valve Seat | PP or AISI316L | |||||||
Valve Ball | PYREX or AISI316L | |||||||
Valve Housing | PP | |||||||
Gaskets | PTFE |
