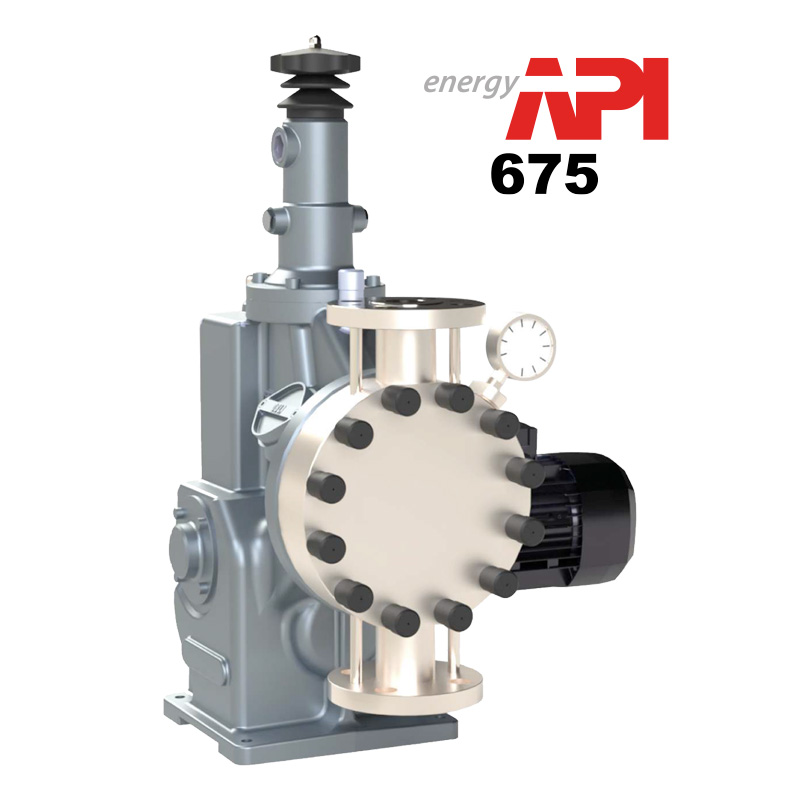

The XL’s are rugged and very accurate single-block positive return hydraulic diaphragm pumps suitable for high demanding 24/7 industrial applications.
Built in full compliance with API675 and ATEX 2014/34/UE standards, these pumps house a relief valve, an air purge valve, and a mechanically actuated self-replenishing hydraulic system.
These features combined protect the pump and the whole dosing system from damages due to overpressures, while granting a proper chemical dosing under any circumstances.

• Flow rate from 63 to 1500 l/h (13,8 to 330 gph)
• Working pressure up to 20 barg or 290 psi
• Chemical resistant coated cast iron enclosure
• AISI 316, PVC, PP, PVDF, HAST C liquid end
• Manual stroke length adjustment, electronic actuator available
• Built-in relief valve, air purge valve and self-replenishing hydraulic system
• Rupture detector pressure gauge included
• Steady-state accuracy ±1%, linearity ±3%, repeatability ±3%
• Max working liquid temperature +60°C
• API675 and ATEX 2014/34/UE compliant
